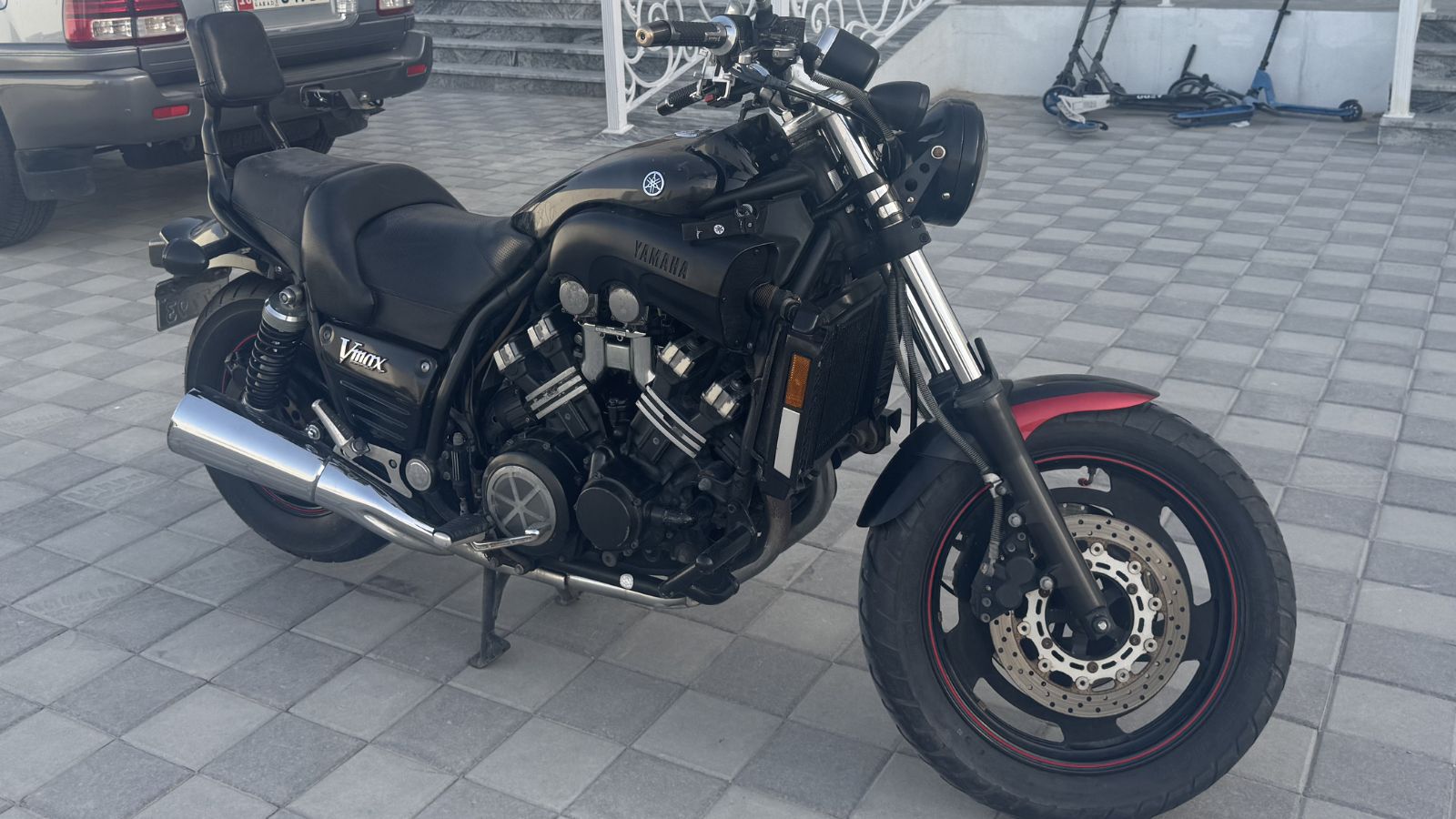

When I bought my 2005 Yamaha VMAX 1200, it was very much a bike living on reputation rather than condition. The engine ran well enough, but everything around it told a story of years of neglect. The clutch lacked engagement and felt vague. The brakes were completely shot. The tyres were so old and hardened they felt closer to wood than rubber. It was a VMAX in name and shape only, and it was clear that if I wanted to experience what this bike was meant to be, a full running restoration was unavoidable.
Assessing the Problems Beneath the Legend
The VMAX engine is famously robust, and thankfully this one still pulled cleanly. That almost made the rest of the bike more disappointing. Braking performance was borderline unsafe, suspension was tired, and the rolling gear let the whole package down. Riding it in that condition felt like holding back a wild animal on worn out reins. The potential was there, but the control simply was not.
Completely Rebuilding the Braking System
Brakes were the first major priority. The original 1980s era Sumitomo calipers were replaced with far more capable 2000 R6 calipers, fed by a new Brembo master cylinder. Braided steel brake lines replaced the old rubber hoses, instantly improving feel and consistency. While I was there, the calipers received new pads and fresh seals throughout.
The rear brake was given the same level of attention. The caliper was fully split, cleaned, pistons polished, seals refreshed, and reassembled with care. A new braided hose completed the setup. To finish it properly, the bike received new brake discs all around, secured with titanium rotor bolts. The result was braking power and feedback the VMAX never had from the factory.
Solving the VMAX’s Biggest Design Flaw
The single biggest challenge of the entire restoration was the wheels. The original VMAX setup uses an unusual 18 inch front and 15 inch rear, sizes that made sense decades ago but are now a nightmare for tyre availability and pricing. Finding decent modern rubber was nearly impossible, and when available, the prices were absurd.
The solution was to start fresh. I had a completely new set of wheels manufactured in the UK. The front remained 18 inches in diameter but was widened to just under three inches, giving far more tyre choice. The rear was converted to a far more sensible 17 inch diameter and six inches wide, allowing the use of a proper 190 section sport touring tyre. This single change modernized the bike more than almost any other upgrade.
Mechanical Refresh Where It Mattered
Beyond the big-ticket items, the bike received a full service with every fluid replaced. A K&N free flowing air filter was fitted along with a new fuel filter to ensure clean delivery. The clutch was fully addressed, with the master cylinder rebuilt, braided clutch lines installed, and the slave cylinder stripped, cleaned, resealed, and reassembled. Engagement returned crisp and predictable, transforming low-speed control and hard launches alike.
Suspension That Finally Matches the Power
The front forks were refreshed with heavier weight oil to better control dive and rebound. Out back, the tired original shocks were replaced with YSS units set up with additional preload to cope with the bike’s weight and torque. The difference was immediate. The VMAX stopped feeling like it was sitting on marshmallows and started feeling planted and controlled.
A Completely Transformed Ride
On the road, the change is dramatic. With the suspension sorted, modern geometry from the new wheels, and Pirelli Angel GT sport touring tyres fitted, the bike feels composed and confident. Turn-in is predictable, stability is vastly improved, and the VMAX finally feels like a complete motorcycle rather than just a straight-line monster.
And then there is the engine. With the V-Boost system fully operational, everything changes once the tach swings past 6,000 rpm. The intake opens, the motor hardens its voice, and the bike simply takes off with the kind of urgency that made the VMAX legendary. Even today, that surge feels outrageous and addictive.
A Hidden Surprise Beneath the Vinyl

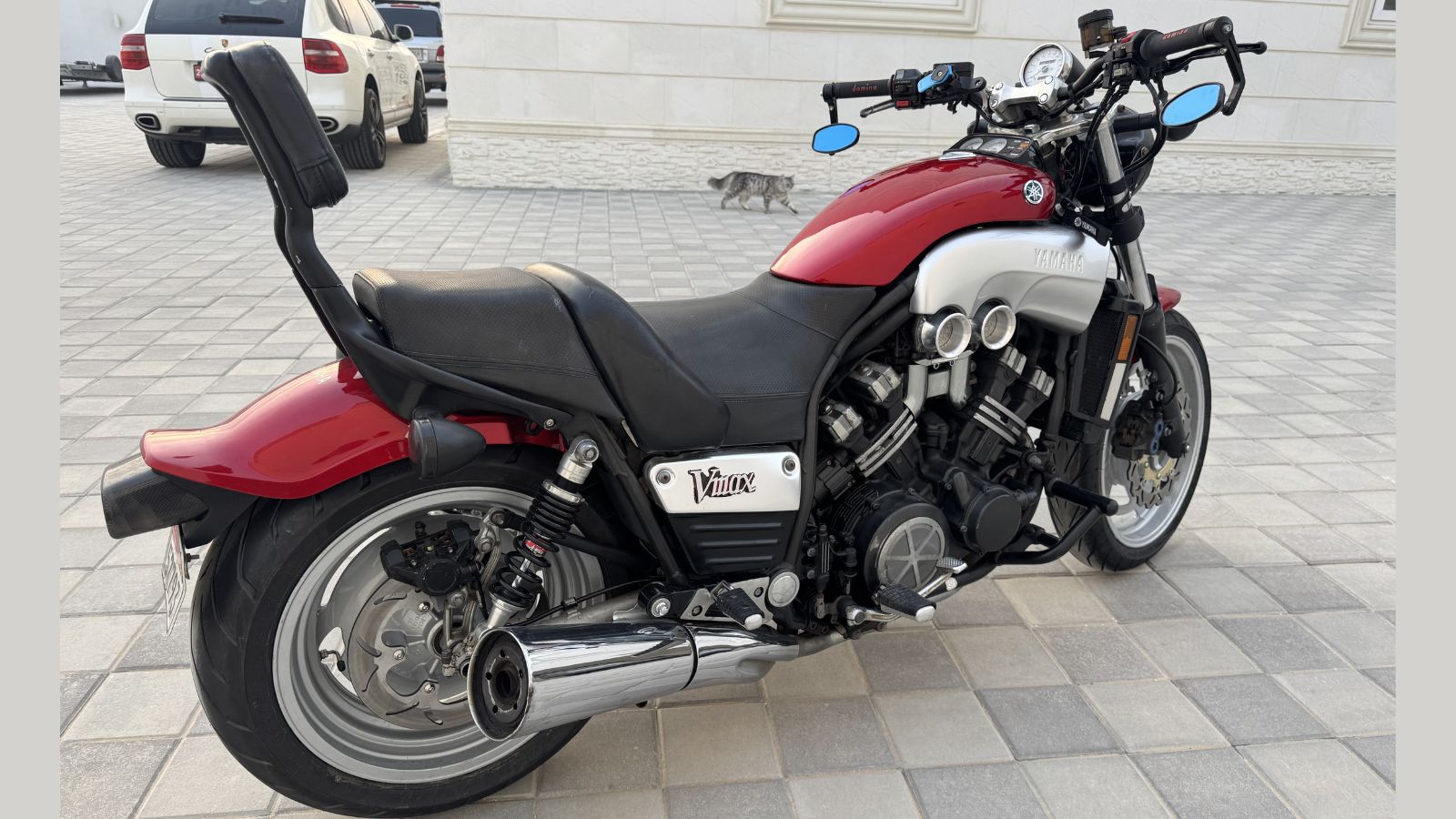

The final and most unexpected reward came when I removed the black vinyl wrap applied by the previous owner. Underneath was the original 25th Anniversary red flamed bodywork, finished in deep, luxurious candy paint. It was like uncovering buried treasure. What I thought was a tired, disguised bike turned out to be a special edition hiding in plain sight.
Better Than New in All the Ways That Matter
Today, the bike feels sharp, cohesive, and arguably better than when it first rolled off the production line. It retains the raw muscle and outrageous personality that defines the VMAX, but now it has the braking, handling, and reliability to truly enjoy it. This was not a cosmetic restoration. It was a resurrection. And every time the V-Boost hits and the horizon rushes forward, it proves the effort was worth every hour.
